Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Basic Info.

Wall Material

50mm Thickness Rockwool Panel

Roof Material

50mm Thickness Rockwool Panel

Floor Material

Rockwook Panel+Cement Board Floor

Plumbing System

Customizing

Electricity System

Customizing

Usage

Warehouse, Villa, Dormitories, Temporary Offices, Workshop, Hospital

Certification

ISO, CE

Customized

After-sales Service

One Year

Warranty

One Year

Transport Package

Sea Worthy Package

Specification

customised

Trademark

KXD

Origin

China

HS Code

940690

Production Capacity

5000 Sets Per Year

Packaging & Delivery

Package Size

12000.00mm * 2300.00mm * 2300.00mm

Package Gross Weight

27.000kg

Product Description

Prefabricated light steel structure container is a kind of box-type house with light steel structure as the frame, which adopts modular design and factory prefabrication. After the construction and internal decoration of each module in the factory, it is transported to the project site and quickly assembled by standardized connection.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Performance advantage

• convenient and efficient construction: in factory prefabrication, the site only needs simple assembly, greatly shorten the construction cycle, improve the construction efficiency, can be quickly put into use, save time and labor cost.

• good seismic performance: light steel structure has good ductility and toughness. In the event of natural disasters such as earthquakes, it can effectively absorb and disperse seismic force, and ensure the overall stability and safety of the building.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

• high spatial utilization: free combination and splice, flexible design of spatial layout according to actual requirements, improve spatial utilization, and meet the diversified needs of different users.

• environmental recovery: the main materials are light steel structure and prefabricated parts, high recycling utilization rate, reduce the generation of construction waste, in line with the concept and requirements of sustainable development.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

• excellent thermal insulation performance: by using efficient insulation materials, it can effectively maintain indoor temperature stability, reduce energy consumption and achieve energy saving effect. • good overall performance: through reliable connection, the components are closely combined to form a whole, with good air tightness and water tightness, which can effectively prevent air infiltration and rainwater leakage.

• reusable: after the end of use, it can be easily dismantled and recycled, and after simple processing, it can be used for other projects again, reducing resource waste and cost.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Application domain

• commercial buildings: it can be used to build commercial shops, hotels, apartments, etc., to meet the needs of commercial places for space flexibility, convenience of decoration and rapid business.

• public buildings: hospitals, schools, office buildings, etc., play an important role in situations that require rapid construction and temporary use, such as mount fire and Raytheon hospital during the outbreak.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

• residential construction: it can be used as temporary housing and transfer housing, providing temporary living places for construction workers and people in the disaster area, and also serves as some characteristic residential projects to meet people's needs for personalized living space.

• temporary buildings: such as temporary office rooms, workers' dormitories at construction sites, as well as temporary rooms at large competitions, exhibitions and activities, can be quickly built and demolished, which is convenient and flexible to meet the needs of temporary use.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Production Parameters

Dimensions and Tare (ISO Standard 1161)
External length 20'/ (inner length) 20′: 6.055m/(5.851m)
External width/ (inner width): 2.435m/(2.231m)
External height/inner height: 2.790m/(2.510m)
Tare: 1950 Kg

Type	External Dimension
Type	Long	Wide	High
Standard Container (20 feet)	6058	2438	2591
Non-Standard Container (10 feet)	3029	2438	2591
Non-Standard Container (16 feet)	4876	2438	2591
Non-Standard Container	6058	2990	2591
Non-Standard Container	6058	4876	2591
Non-Standard Container	6058	7314	2591

Performance Parameter

Main performance		Standard form
Ground live load		2.0
Roof live load		1.0
Seismic capacity		8 degree
Wind resistance		11 stage(allowable wind pressure 0.66kN/m2)
Allowable stacking layer number		3
heat-insulating property (W/m2·K)	roof	0.39
	wall	0.72

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

(1) Steel Framework

Primary frame: cold formed steel profiles to as columns and girders of roof and chassis in a thickness of 3 to 4mm
Secondary frame: rectangular hollow steel to be as secondary beam at the roof.

Fittings:8 corner fittings (dimensions according to ISO standard 1161), rainwater pipe in the roof framework, plate thickness of 10mm excluding top corner fittings of the top kit of each bundle (20mm thickness)

Forklift openings: openings for fork-lift pockets in the floor framework, dim 88*250mm in a distance of 1700 mm

Surface finished: shot blasting, epoxy primer coating in a thickness of 30 μm, finished alkyds coating in a thickness of 60-70 μm. Total dry paint 90~100 um thickness.

(2) Floor Chassis Composition
External wainscot: flat galvanized steel sheet metal in a thickness of 0.5mm.

Insulation filling: noncombustible mineral wool in a thickness of 100 mm among hollow steel transverse supports. Mineral wool density:50 Kg/m3

Steam blockade: PE foil in a thickness of 80 μm
Cement board:
CCA boards (Cellulose Fiber Cement Board, Autoclaved)
in a thickness of 18 mm Density: 1500Kg/ m3

Reaction to Fire Classification: A1 certified ISO EN 13501

PVC flooring covering in a thickness of 1.5mm

Permitted loading: 4 .5 KN/m2 or 6 KN/m2 (reinforced under-structure)
K value: 0.45 W/ m2K
R value (Thermal Resistance) = 2.2 m2K/W

(3) Roof Composition
(50mm sandwich mineral wool panel)
External wainscot: 1.6 mm thick corrugated "ISO" roof, CORTEN made, and shot blasted& painted.
Steam blockade: PE foil in a thickness of 80μm
Insulation filling:noncombustible mineral wool in a thickness of 50 mm among 30X50X2 mm steel square bars. Mineral wool density: 50 Kg/ m3
Ceiling made of 50 mm thick mineral wool sandwich panels screwed to the steel beams of the roof frame. Sandwich panel composition:
Meteor water outlet: 4 each of PVC rainwater pipes, diameter 50mm in corner pillars
K value: 0.45 W/ m2K
R value (Thermal Resistance) = 2.2 m2K/W
Galvanized and painted steel sheet metal on both sides. Steel thickness: 0.5mm, white color

Insulation filling: mineral wool in a thickness of 60mm, density 120 Kg/m3

Permitted loading (standard roof) : 2.1 KN/m2
(4)Facade Walls
Sandwich mineral wool
Side panels' width:1140mm; total panel thickness: 60mm.
Five panels fit into the long side and two panels fit into the short side of
container and they are fully interchangeable
Composition:
External wainscot:
Galvanized and painted steel sheet metal in a thickness of 0.5mm, white
color
Insulation filling:
Mineral wool in a thickness of 60mm
Inner wainscot:
Galvanized and painted steel sheet metal in a thickness of 0.5mm, white color.
Permitted loading: 100 kg/m2
Mineral wool density: 120 Kg/m3
K value: 0.71 W/ m2K
Fire rating: 36 minutes according to GB 12955-91 and 20 minutes according to BS 476

(5)Doors
External Aluminum door. Single fold, 40mm thick, made of:
1. a frame in pre painted aluminum
2. hot galvanized and pre painted steel sheets (inside and outside)
3. insulated with PL (polystyrene)
4. Net opening dimensions: 820 x 1985 mm; furnished with a handle lock with 3 keys.
Composition:
1. External frame: galvanized and painted steel profiles, thickness 0.7 mm
2. External and internal wainscot: galvanized and painted steel sheet metal in a
thickness of 0.7mm.
3. Equipped with 3 hinges, lock and anti-burglary flange
4. Insulation filling: non-combustible mineral wool in a thickness of 50mm.
5. Mineral wool density: 60 Kg/m3
Windows
Made of PVC, white color, with dimensions 800 to 900 mm× 1100 to 1200mm,
1. glazed with double layer glass in a thickness of 4/15/4mm, with "tilt & swing"
2. Mechanism with aluminum made rolling shutters

(5) Electrical Installations
Standard: UK Specification
Voltage: 220 V, 50 Hz single phase
Network connections: suitable-connection plug/socket, 3-5 poles 32 A +, 220V ~ mounted on the top frame in upper corners of a shorter side wall
Inner distribution system: cables of suitable dimensions (6, 2.5, 1.5 mm2 for 220 voltage, flush-mounted.
Protection: protective current switch (40 A +/2E/4E-0,03A), automatic fuses (C-characteristics) of suitable power (6A, 10A, 16A, 20A)
Earthing: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame
Fittings:
Electric distribution box - 1×40A+/2E/4E-0.03A (protective current switch), 1×10A & 2×16A as standard lay out (automatic fuses)
Double fluorescent lights 2×36W 220V- 2 each IP 65 rated
Option: "PRC" neon lights IP 65 rated
Low level flush-mounted illuminated double sockets 220 V/110 V - 3 each
Low level flush mounted illuminated double socket 220V/110V with double SUB port - 1 each
Flush-mounted switches 220 V/110 V - 1 each
(6) Possibilities of Container Mounting
On a flat solid surface (asphalt, concrete,)
On point foundations (concrete cubes, dimensions 30/30/30cm, 6 pc/20' container)
On band foundations (concrete band, 30cm wide, on the container circumference)
Certification: Dimensions, weight, payload and stacking are RINA certified. Certificates available for components.
Delivery: Containers can be delivered assembled or individually - in kits 648 mm high.4 kits can be bundled in packages 2591 mm high (ISO dimensions)

The prefab house is based on light steel as the skeleton, sandwich panels as the maintenance material, with standard modulus (1.8m) or space combination according to customer needs.

Detachable Container House (20 feet container)
Single Unit Detail	Length	5950mm
	Width	3000mm
	Height	2800mm
	Weight	1300kg
Roof Live Load	0.5KN/m²
Wind-Resisitance	0.6KN/m²
Seismic Resistance	8 Grade
Fire-proof Grade	A
Service Life time	10-15 years
Installation Time	4 labors with 3 hours for 1 unit house
Max Floors	3
Loading	20' Container (7 units house)	40' HQ container (17 units house)

Flat Pack Container House (20 feet container)
Single Unit Detail	Length	6058mm
	Width	2438mm
	Height	2896mm
	Weight	2145kg
Roof Live Load	0.5KN/m²
Wind-Resisitance	0.6KN/m²
Seismic Resistance	8 Grade
Fire-proof Grade	A
Service Life time	15-20 years
Installation Time	4 labors with 2 hours for 1 unit house
Max Floors	3
Loading	20' Container (3 units house)	40' HQ container (7 units house)

About the frame connection, detachable container use screws to connect the column and the top/bottom beams. Flat pack container connects the column and the top/bottom beams by welding. So production time of flat pack container is longer than that of detachable container. Relatively speaking, flat pack containers' on-site installation is faster and easier.

Although now detachable contaiber house has good performance, flat pack container house has better performance because it uses a combination of frame + columns.

Combining many advantages of detachable containers house and general containers, flat pack containers have good performance in transport and installation. Further there is little loss after repeated disassembly and transfer. However, the shipping volume of the flat pack container house is still larger. So its sea freight cost is higher. With the product own price, please choose the type as your actual.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Company Profile

Our company offers you various kinds of steel constructions, which would meet all your requirements. Our company are professionally engaged in steel structure design,manutacture and installation. Our specialists have extensive experience in working with different type constructions. Steel constructions are manufactured by using drawing tools, in accordance with customers' all requirements and quality standards.
Our aim is highest quality, competitive price, and best service to satisfy our customers, we will always keep on creating and innovation, build a best credibility and highest reputation company in the world.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Detailed Photos

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Packaging&Shipping

The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Erection

Upon customer request, we could send our engineer to guide the installation, or a small team to install at the same time, teaching local workers to install, or enough workers to install all the goods by ourselves. It depends on whether the cost is economic.

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Welcome to visit us for further negotiate

If you are interested in our poducts,please contact with us.

Product Tags:

prefabricated container dormitory

prefabricated dormitory container

modular container dormitory

Prefabricated Combined Portable Low Cost Steel Structure Modular Apartment/Villa/Offices/Dormitory Container

Qingdao KXD Steel Structure Co., Ltd

Qingdao KXD Steel Structure Co. Ltd is a leading manufacturer specializing in prefab modular camps, pre-engineered steel buildings and foundation helical piles, providing reliable and cost-effective solutions for temporary housing, construction sites, event spaces, and off-grid living. With a strong focus on durability, flexibility, and sustainability. KXD was incorporated in the year of 2003 and has also acquired the ISO 9001;2008 and CE certificates. We at KXD pride ourselves on the fact we are one of pioneer general contractor to provide integrated and custom design, engineering, manufacture and installation services for your project.

We has bridle-wise manage team, design team and QC team, and can supply customer project design and price in
the earliest date , arrange your order correctly, strictly control the mass production quality and lead time , and let the business goes smoothly !

OUR MISSION: Benefit society,make sfaff successful, and give clients happiness,thus being an enterprise of lasting vitality.

ENTERPRISE PHILOSOPHY: Customers first

STANDARD OF VALUE: To befefit the society, clients, enterprise, staff and partners.

WORKING ETHIC: To be careful, fast and loyal to promise

ENTERPRISE SPIRIT:Passion, practicality, graatitude and transcendence

BEHAVIORAL PRINCIPLE:To accomplish work on time without any excuse

Uzbekistan Cold Room Project

Length*Width*Eave height:92m*84m*7.5m

Wind load: 0.45kn/m² Roof cladding:colorbond steel sheet+50mm fiberglass wool insulation Wall+Partition wall:PU sandwich panel

Prefab Modular Camps

Prefabricated and customizable container-based units for offices, dormitories, and mobile clinics.

Quick assembly, weather-resistant, and energy-efficient designs.

Ideal for remote locations and temporary infrastructure needs.

Helical Piles (Spiral Ground Screws)

High-strength, galvanized steel ground anchors for fast foundation installation.

No concrete required—eco-friendly and reusable.

Suitable for solar panel mounts, fencing, signage, and modular buildings.

Steel Structure Building

Why Choose Us?
✔ Quality Assurance: ISO-certified manufacturing with rigorous testing.
✔ Global Experience: Successful projects across [list regions/countries].
✔ Custom Solutions: Tailored designs to meet specific project requirements.
✔ Competitive Pricing: Cost-efficient without compromising durability.

To enhance credibility and meet international standards, We research target market and customer requirements to determine relevant certifications ( ISO 9001 for quality management, FSC for sustainable products)

Conduct an internal audit to assess compliance with certification criteria.

Address gaps in processes, documentation, or supplier quality controls.

Implement Compliance Measures

Develop a Quality Management System (QMS) aligned with ISO 9001 standards.

Train staff, establish SOPs, and ensure traceability in the supply chain.

Select a Certification Body.

Choose an accredited third-party auditor (e.g., SGS, TÜV, Bureau Veritas).

Applications

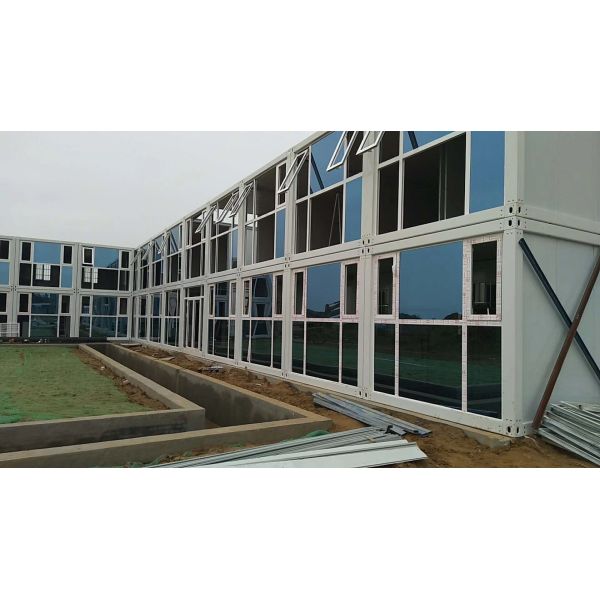

Construction: Worker camps, site offices.

Events: Pop-up hotels, exhibition spaces.

Energy: Solar farm foundations.

Humanitarian: Emergency shelters.

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Qingdao KXD Steel Structure Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Dormitory Container products from this supplier

Find Similar Products By Category:

Hardware

Hot Searches:
